FUJIKURA PRODUCTS

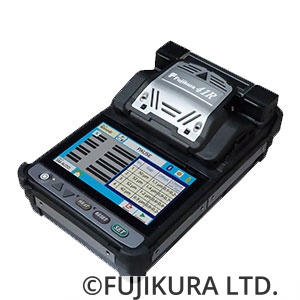

The 41R is a equipped with good mobility and our wireless communication function, “Active Blade Management Technology”, where the splicer is connected to and monitors the fiber cleaver and ribbon fiber stripper With Active Blade Management Technology, it is far easier to maintain high quality fiber preparation. This product monitors every fiber’s end shape to assess the cleave quality. If the cleaved fiber is bad due to a worn blade position, this product sends a command to the fiber cleaver to rotate to the next viable blade position. The cleaver then executes the blade rotation automatically via an internal motor. This functionality greatly prevents operators from making a bad splice due to a worn out blade position. In addition, both the heating temperature and heating time of the ribbon fiber stripper are automatically changed according to the splice mode setting.

The Fujikura 31S+ is a fully ruggedized, active cladding alignment fusion splicer. The dualcamera active V-groove alignment system provides consistent splicing performance in the most challenging conditions. A 6-second splice time and 25-second shrink time offers unmatched speed and productivity, while an easy-to-use touchscreen monitor provides simple and intuitive menu navigation. Interchangeable sheath clamps or fiber holders provide versatility for user preference, and compatibility with fusion-installable connectors. The extended-life battery is rated for up to 200 splice and heat cycles. Long-life electrodes, lasting 5,000 splices, help minimize downtime for replacement and stabilization. The large 5" monitor provides a crystal clear image, even in the brightest sunlight. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available.

The 45S cladding alignment fusion splicer is changing the way people splice fiber in small to mid-fiber count applications. This Fujikura splicer debuts a landmark improvement to the fusion splicing process with the ability to prepare and load both fibers simultaneously. The hand-held fiber coating stripper, the SS-05, is capable of stripping two 250 μm coated fibers in the same pass, along with the CT-16A cleaver adapter plate which can likewise accommodate two bare fibers for cleaving. After preparation, the 45S patented sheath clamps enable loading both fibers simultaneously into the splicer with one fiber in each hand. The user can press down on the sheath clamp base to close it while positioning the fiber in the v-grooves. This enables onehanded operation. Furthermore, the 45S sheath clamps are mechanically linked to the wind protector, so after splicing is finished, opening the wind protector also opens both sheath clamps for quick sleeve positioning and transfer to the tube heater. The 45S tube heater shrinks sleeves much faster than its predecessor with a nominal ~20 second heat time for 60 mm sleeves down from ~26 seconds. The simultaneous fiber preparation capability, automated sheath clamp opening, and a faster tube heater, combine to lower the overall fusion splicing cycle time by ~30% or more. The 45S continues to benefit the user experience with improvements to fiber placement, battery access, and machine ergonomics. Previously, when using sheath clamps, if the cleaved fiber was accidentally set past the electrode centerline, the machine would send an error and require manual intervention. The 45S will now accept this mistake and reverse the fiber to correct position automatically. With a cube form factor, the 45S is easily transported and operated in space-constrained environments. The adjustable screen can alleviate glare from the sun and adjust with abnormal splicer positions confronted in challenging splice locations. Backed by the best service team in the industry, the Fujikura 45S is the ideal splicer to use when portability, ruggedness, speed, and reliability are needed. If you’d like to see the 45S capabilities first-hand, please contact us at 1-800-235-3423 to arrange a product demonstration at your earliest convenience.

The 90S+ is a core alignment fusion splicer setting a new standard in the market for fusion splicing. The 90S is packed with a whole host of new and enhanced features specifically developed with the objective of enabling the user to work faster with higher precision. Overall splice process time has been significantly reduced. This has been achieved with a combination of improvements to the reaction time of the automated wind protectors and automated heater, new fibre retention clamps, improved universal sheath clamps and a redesigned internal structure that matches the protection sleeve to the fusion splice point which enables splicing to be achieved without the need of the user to touch the 90S once the process has started.

The Fujikura 90R is the mass fusion splicer workhorse of the splicing world. As data demand continues to rise, the solution to handle the increased traffic is to increase fiber counts.

The FSM-100M and FSM-100P offer a host of innovative technologies to address the rapidly expanding splicing needs of factory, manufacturing, laboratory and R&D applications. These capabilities of these model's will revolutionize the way users will splice various types of specialty fibers: LDF, low contrast PM, PCF structured, etc.

The FSM-100M offer a host of innovative technologies to address the rapidly expanding splicing needs of factory, manufacturing, laboratory and R&D applications. These capabilities of these model's will revolutionize the way users will splice various types of specialty fibers: LDF, low contrast PM, PCF structured, etc.

Whether splicing similar fiber types or double clad LDF fibers for high power lasers, the FSM-100P+ splicers provide multiple solutions for diverse production needs. The FSM-100　+　series sets the standard for fusion splicing with a multitude of new features designed to make splicing easier.

Whether splicing similar fiber types or double clad LDF fibers for high power lasers, the FSM-100M+ splicers provide multiple solutions for diverse production needs. The FSM-100M+ sets the standard for fusion splicing with a multitude of new features designed to make splicing easier.

AFL’s LZM-100 LAZERMaster is a glass processing and splicing system that uses a CO2 laser heat source rather than electrodes, ensuring repeatable performance and low maintenance, and eliminating electrode or filament maintenance and instability. Splicing or adiabatic tapering (to create mode field adapters or pump combiners) can be performed with glass diameters of 2.3 mm or more. The high resolution optical analysis system works in conjunction with on-board firmware for fully automatic splicing, tapering and other glass shaping processes.

The APM-101 perform all the steps required to prepare optical fibers before splicing – automatically and with high consistency. This includes stripping the fiber without degrading fiber quality, cleaning fiber with alcohol to remove coating residue, and cleaving consistently at a right angle to the fiber axis. The entire process is complete in as little as 23 seconds.

The APM-102 perform all the steps required to prepare optical fibers before splicing – automatically and with high consistency. This includes stripping the fiber without degrading fiber quality, cleaning fiber with alcohol to remove coating residue, and cleaving consistently at a right angle to the fiber axis. The entire process is complete in as little as 23 seconds.

The PCS-100 has been designed for stripping polyimide coating optical fibers. Do not attempt to use this machine for other applications. Fujikura Ltd. gives careful consideration and regard to personal injury. Misuse of the machine may result in electric shock, fire and/or serious personal injury.

HTS-12 is designed for stripping single count of silica optical fiber by keeping the stripped fiber's glass surface free from any physical contact. In order to achieve the above condition, the HTS-12 has a precise linear slide base for stripping action. The fiber is not scuffed by the blade or any other materials when being stripped. The HTS-12 is equipped with a heater to soften the fiber coating. The HTS-12 accepts the FH-40 series and FH-100 series Fiber Holder System

LTC-01 is the special tool for removing loose tube without damage to the UV acrylate coated optical fiber inside the loose tube.

The RS02/03 was developed with emphasis on ease-of-use, flexibility, and ergonomics. This thermal stripper requires less force for the stripping process than previous generations. Furthermore, the RS03 is equipped with a large capacity battery for 600 stripping cycles, 6 times longer than conventional thermal strippers.
